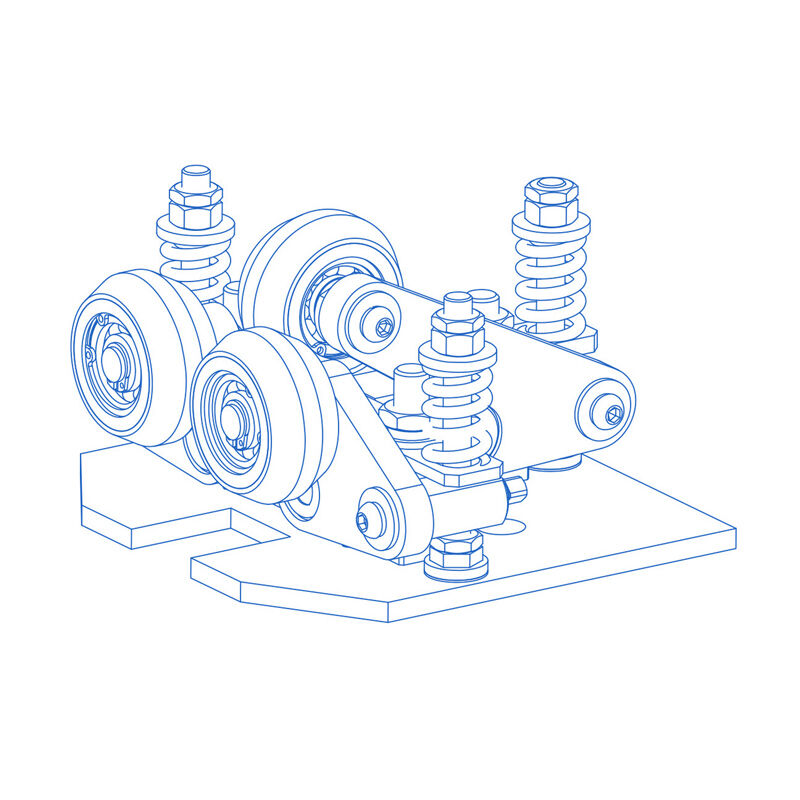

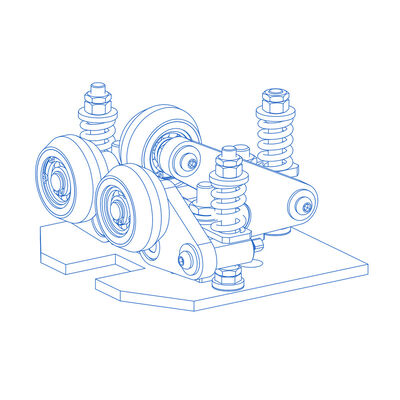

Elevator Safety Brake Elastic Roller Guide Shoes With 50mm Wheel Diameter

Elevator Safety Brake Elastic Roller Guide Shoes With 50mm Wheel Diameter
Elevator Safety Brake Elastic Roller Guide Shoes With 50mm Wheel Diameter

Μεγάλες Εικόνας :  Elevator Safety Brake Elastic Roller Guide Shoes With 50mm Wheel Diameter

Λεπτομέρειες:
Τόπος καταγωγής: Κίνα
Μάρκα: SUNNY
Πιστοποίηση: CE,ISO9001
Αριθμό μοντέλου: SN-HNL50B
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 1 ΤΕΜ
Τιμή: $50~100
Συσκευασία λεπτομέρειες: Σε κουτί από χαρτόνια
Χρόνος παράδοσης: 7 ~ 15 ημέρες
Όροι πληρωμής: L/C, T/T, Western Union
Δυνατότητα προσφοράς: μήνας 5000 PC

Elevator Safety Brake Elastic Roller Guide Shoes With 50mm Wheel Diameter

περιγραφή
Όνομα: Elastic Roller Guide Παπούτσια Ωριαία ταχύτητα: 0,63 M/S
Διάμετρος κυλίνδρου: 50 Πλάτος των σιδηροτροχιών: 9/10mm
Μοντέλο: Elastic Roller Guide Παπούτσια Μεταχειρισμένος: Μέρη ανελκυστήρα
Υλικό: πύργος Χρόνος εγγύησης: Ένα χρόνο
Τύπος: Elastic Roller Guide Παπούτσια Προϊόν: Elastic Roller Guide Παπούτσια

Elevator Safety Brake Elastic Roller Guide Shoes With 50mm Wheel Diameter



Recommended for residential elevators, high-end villa elevators and counterweight sides. PU roller guides are used for high-requirement lifts and logistics conveyors. Elastic guides offer better comfort, smaller size, less space occupation, and easier installation and adjustment.



Parameter Table

Product

Model

Roller

Number of Springs

(0/1/3)

Rated Speed

(m/s)

Rated

Normal Load

(N)

Max Normal

Load

(N)

Rated Load

Q(kg)(Recommended)

Rail Width

(mm)

Dimensions

(Length*Width*Height mm)

Weight

(kg)

Material

Diameter of

Roller(mm)

HNL50B Rubber 50 3 0.63 200 550 400 9/10 144*155*94 3.3
PU 50 3 0.63 500 800 630 9/10 144*155*94 3.3
HNL70B PU 70 3 1.75 500 1000 1250 9/10/16 141*187*130 4.7
HNL90B PU 90 3 2 600 1200 1600 9/10/16 206*273*158 5.8
HNL105B PU 105 3 2.5 500 1200 1600 10/16/19 216*290*179 6.7
HNL125B PU 125 3 2.5 600 1200 2000 10/16/19 205*318*200 8.8
HNL140B Rubber 140 3 Counterweight side 6, car side 3 500 1000 1600 10/16 214*321*215 9.4
PU 140 3 3 600 1200 1600 10/16/19 214*321*215 9.4
HNL150B PU 150 3 3 600 1200 2500 10/16/19 214*329*220 10.2
HNL160B Rubber 160 3 Counterweight side 7, car side 4 500 1000 1600 16/19 213*340*262 12.7
PU 160 3 3 600 1200 3000 10/16/19 213*340*262 12.7
HNL200B Rubber 200 3 Counterweight side 10, car side 5 500 1000

Car side 2000

/

16/19/28.6 245*416*293 17.4
PU 200 3 3 600 1200 3500 16/19/28.6 245*416*293 17.4
HNL260B Rubber 260 3 6 500 1000 2000 16/19/28.6 307*548*343 23.2
PU 260 3 4 600 1200 3500 16/19/28.6 307*548*343 23.2
HNL300F Rubber 300 3 10 500 1000 2000 16/19/28.6 344*620*388 30.8
PU 300 3 5 600 1200 3500 16/19/28.6 344*620*388 30.8



Interface Table

Guide Shoe Model Roller Type A B C D E F G H I Standard Drawing Number
HNL50B Rubber 144 155 94 155 65 / 100 2-Φ28 50 /
PU 144 155 94 155 65 / 100 2-Φ28 50 /
HNL70B PU 141 187 130 145 80 / 100 2-18×22 waist hole 70 MAADA00066
HNL90B PU 206 273 158 200 80 80 100 4-18x30 waist hole 90 MAADB00073
HNL105B Rubber 216 290 179 200 80 80 100 4-18x30 waist hole 105 MAADF00002
HNL125B PU 205 312 193 180 80 80 100 4-18x30 waist hole 125 MAADN00001
HNL140B PU 214 321 215 160 80 80 100 4-18x22 waist hole 140 MAADCO0021
HNL150B PU 214 329 220 160 80 80 100 4-18×22 waist hole 150 MAADK00001
HNL160B Rubber 230 340 262 230 80 80 100 4-Φ24 160 MAADD00012
PU 230 340 262 230 80 80 100 4-Φ24 160 /
HNL200B Rubber 245 422 293 182 57 76 140 4-Φ17 200 MAADM00004
PU 245 422 293 182 57 76 140 4-Φ17 200 /
HNL260B/F Rubber 307 536 355 188 65 160 140 4-M12 260 MAADP00001
HNL260B PU 307 536 355 188 65 160 140 4-M12 260 /
HNL300B/F Rubber 344 620 388 207 80 80 140 4-M12 300 /



Elevator Safety Brake Elastic Roller Guide Shoes With 50mm Wheel Diameter 0



Elevator Safety Brake Elastic Roller Guide Shoes With 50mm Wheel Diameter 1



Elevator Safety Brake Elastic Roller Guide Shoes With 50mm Wheel Diameter 2



Elevator Safety Brake Elastic Roller Guide Shoes With 50mm Wheel Diameter 3



Elevator Safety Brake Elastic Roller Guide Shoes With 50mm Wheel Diameter 4



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
